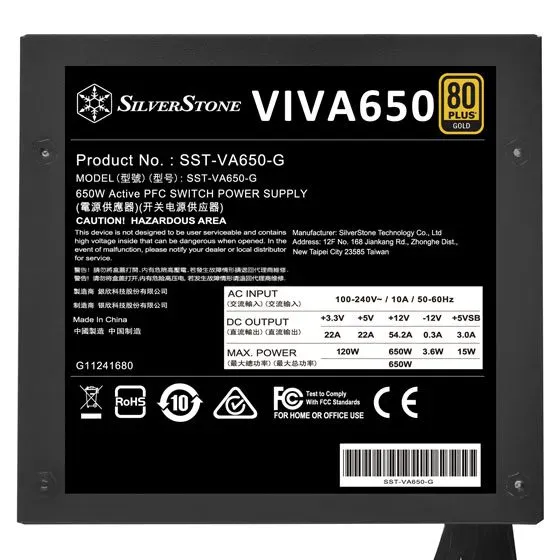

Silverstone PSU VIVA 650W+80 Gold
- High efficiency with 80 PLUS Gold certification
- 24/7 continuous power output with 40℃ operating temperature
- Class-leading single +12V rail
- Silent running 120mm fan with 0 dBA minimum, equipped with semi-fanless switch function
- PCIe 8 pin and PCIe 6 pin connectors support
- All black flat cables
Model (safety certification)
SST-VA650-G
Color
Black (lead-free paint)
Max. DC Output
650W
Power density
360W per liter
Load Range
Output | +3.3V | +5V | +12V | +5VSB | -12V |
Max.(Amps) | 22A | 22A | 54.2A | 3.0A | 0.3A |
Peak (Amps) | / | / | / | / | / |
Min.(Amps) | 0A | 0A | 0A | 0A | 0A |
Range (%) | ±5% | ±5% | ±5% | ±5% | ±10% |
Line Reg.(%) | ±1% | ±1% | ±1% | ±1% | ±1% |
Ripple(mVp-p) | 50mV | 50mV | 120mV | 50mV | 120mV |
Combined +3.3V & +5V
120W
Combined +12V
650W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
87% ~ 90% (at 20% ~ 100% loading)
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection
Connectors
1 x 24 / 20-Pin motherboard connector (500mm)
1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (650mm / 150mm)
4 x 8 / 6-Pin PCIe connector (“500mm / 150mm” x 2)
8 x SATA connector (“500mm / 150mm / 150mm / 150mm” x 2)
3 x 4-Pin Peripheral connector and 1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)
Cooling System
Silent 120mm fan
Noise Level
0 dBA minimum
Certification
80 PLUS Gold
Form factor
ATX (PS2)
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
