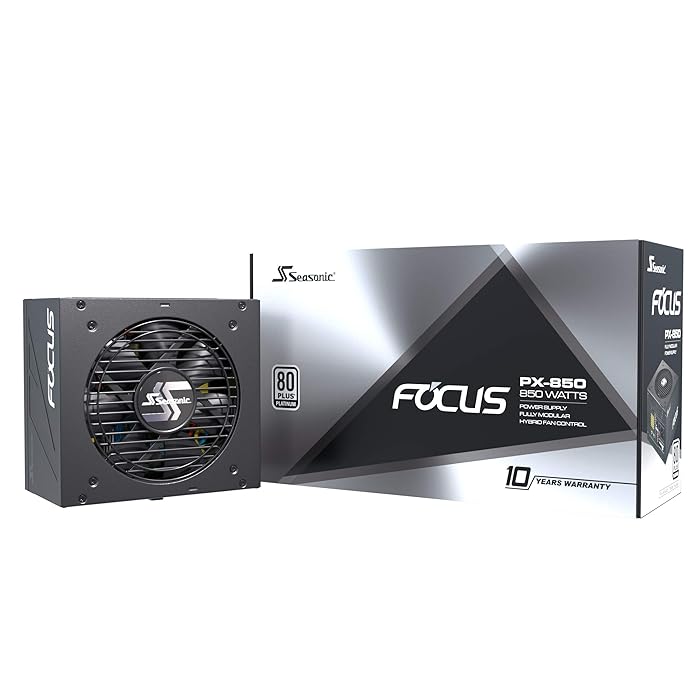

Seasonic FOCUS PX-850 | 850W | 80+ Platinum | Full-Modular | ATX Form Factor | Low Noise | SSR-850PX

Technical Specifications
80PLUS® Platinum
Cybenetics Efficiency Level TBA
Cybenetics Noise Level TBA
Form Factor ATX/EPS
Dimensions 140 × 150 × 86 mm
Fan Information Fan Size 120 mm
Fan Control S3FC (including Fanless Mode)
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % – 65 % RH

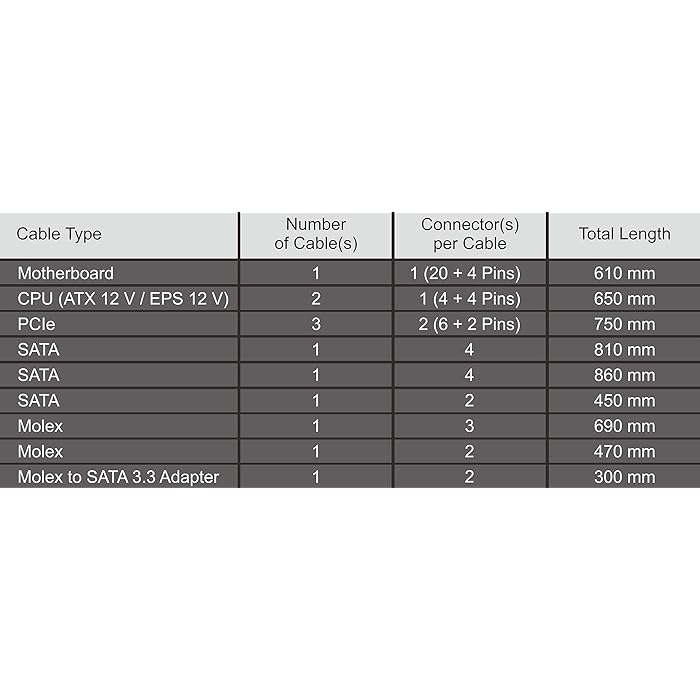

Cable Information Modularity Fully Modular
Electrical Features Operating Temperature 0 – 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 1 Years
Power Output
AC Input 100 V – 240 V
11 – 5.5 A
50 Hz – 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 70 A 0.3 A 3 A
100 W 840 W 3.6 W 15 W
Total continuous power 850 W
