ASUS ROG STRIX X670E-A GAMING WIFI AMD AM5 Motherboard | 90MB1BM0-M0EAY0

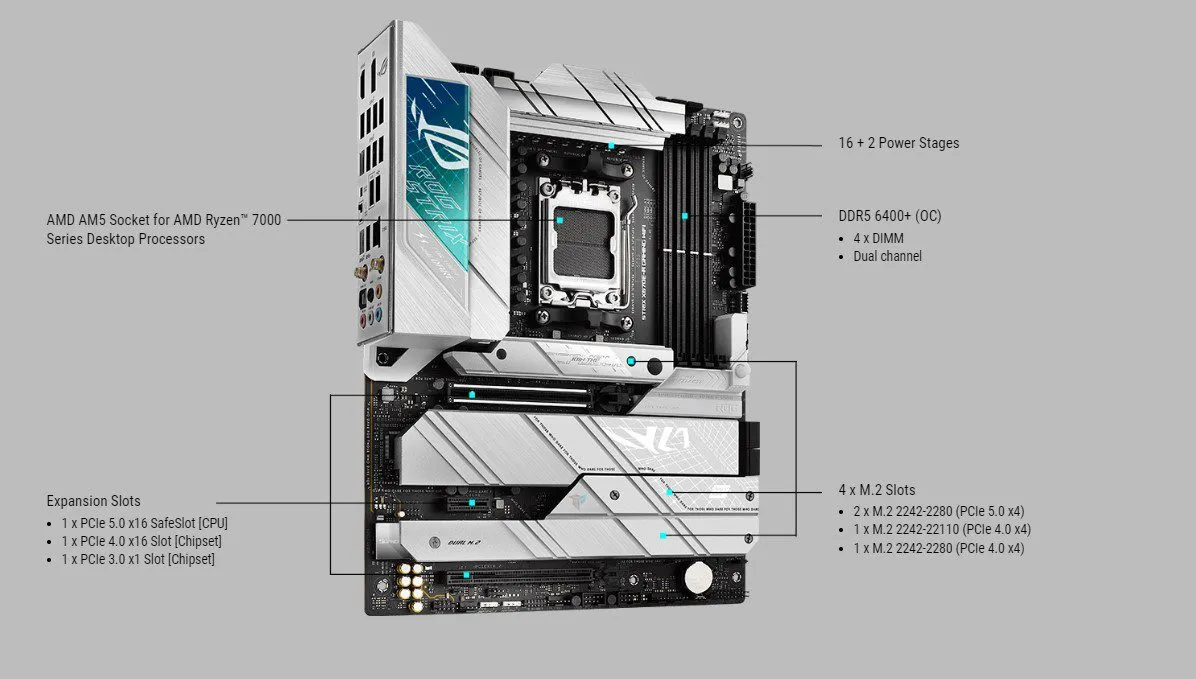

Suit up for the next gen with the stylish ROG Strix X670E-A Gaming WiFi. Its black PCB and white accents neatly contrast silver-colored heatsinks that emphasize premium power delivery for AMD Ryzen™ 7000 Series processors. Exclusive ROG overclocking utilities, full PCIe 5.0 capabilities, and DDR5 support are woven in alongside, adding uniquely tailored performance and AM5 essentials to your gaming build.
ROG STRIX X670E-A Specs
ASUS Prime X670-P Specifications |
CPUAMD Socket AM5 for AMD Ryzen™ 7000 Series Desktop Processors*
* Refer to www.asus.com for CPU support list. ChipsetAMD X670
Memory4 x DIMM, Max. 128GB, DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*
Dual Channel Memory ArchitectureSupports AMD EXTended Profiles for Overclocking (EXPO™)OptiMem II * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function Graphics1 x DisplayPort*
1 x HDMI® port** * Supports max. 8K@60Hz as specified in DisplayPort 1.4. ** Supports Supports 4K@60Hz as specified in HDMI 2.1. *** VGA resolution support depends on processors’ or graphic cards’ resolution. Expansion SlotsAMD Ryzen™ 7000 Series Desktop Processors
1 x PCIe 5.0/4.0/3.0 x16 slot AMD X670 Chipset StorageTotal supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
AMD Ryzen™ 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD X670 Chipset Ethernet1 x Intel® 2.5Gb Ethernet
ASUS LANGuard Wireless & BluetoothWi-Fi 6E
2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* Bluetooth v5.2 * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. USBRear USB (Total 12 ports)
1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®) 8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C®) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) Front USB (Total 7 ports) AudioROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

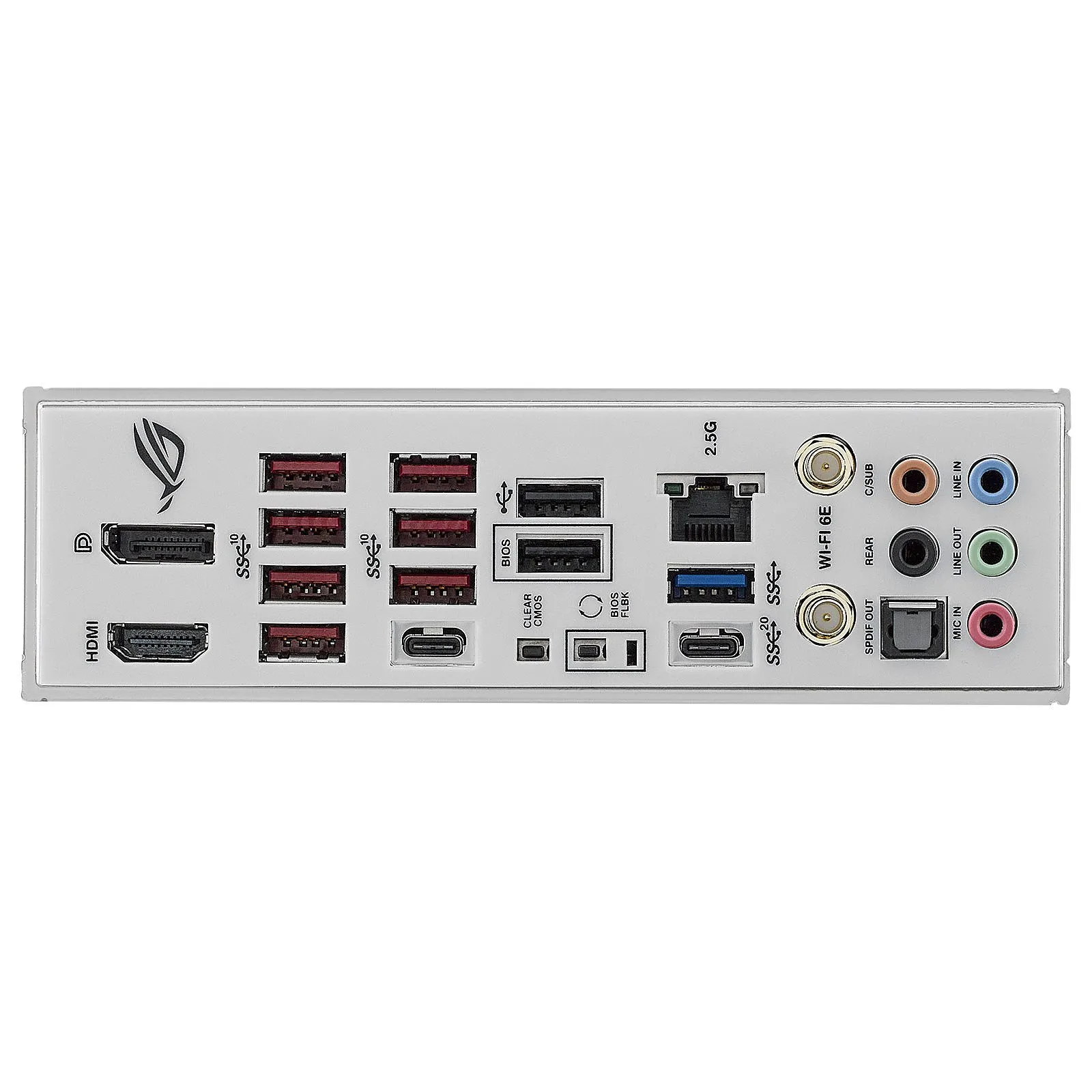

– Impedance sense for front and rear headphone outputs – Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking – High quality 120 dB SNR stereo playback output and 113 dB SNR recording input – Supports up to 32-Bit/384 kHz playback Audio Features – SupremeFX Shielding Technology – Savitech SV3H712 AMP – Rear optical S/PDIF out port – Premium audio capacitors – Audio cover Back Panel I/O Ports1 x USB 3.2 Gen 2×2 port (1 x USB Type-C®)
8 x USB 3.2 Gen 2 ports (7 x Type-A, 1 x USB Type-C®) 1 x USB 3.2 Gen 1 port (1 x Type-A) 2 x USB 2.0 ports (2 x Type-A) 1 x DisplayPort 1 x HDMI® port 1 x Wi-Fi Module 1 x Intel® I225-V 2.5Gb Ethernet port 5 x Audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack™ button 1 x Clear CMOS button Internal I/O ConnectorsFan and Cooling related
1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 5 x 4-pin Chassis Fan headers Power related 1 x 24-pin Main Power connector 2 x 8-pin +12V Power connector Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports USB 1 x USB 3.2 Gen 2×2 connector (supports USB Type-C® ) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports2 x USB 2.0 headers support additional 4 USB 2.0 ports |
---|
