NOCTUA NF-A12x15 PWM CH.BK1850RPM,4PIN PWM
Original price was: 255AED.125AEDCurrent price is: 125AED.
Having received dozens of awards and recommendations from international hardware websites and magazines, the NF-A12x15 has established itself as a default choice when it comes to premium-quality slim 120mm fans. The chromax.black.swap edition combines the NF-A12x15’s signature quiet cooling performance with an attractive all-black design and a bundle of self-adhesive red, white, blue, green, yellow and black anti-vibration pads that allow the colour-customisation of the fan to match individual build colour schemes. Topped off with Noctua’s trusted premium-grade SSO2 bearing, more than 150,000 hours MTTF and 6-year manufacturer’s warranty, the NF-A12x15 PWM chromax.black.swap is the perfect choice for all users who value individual, focused build aesthetics just as much as class-leading quality and performance.
In stock
You’re now subscribed to price tracking for this product. We’ll notify you if the price drops.
Noctua NF-A12x15 PWM chromax black Fan UAE is a premium slim 120mm cooling fan designed for compact PC systems. It delivers powerful airflow, ultra-quiet operation, PWM speed control up to 1850 RPM, and exceptional reliability for gaming PCs, workstations, and small form factor builds.
Noctua NF-A12x15 PWM chromax black Fan UAE Features
Why Choose Noctua NF-A12x15 PWM chromax black Fan UAE?
The Noctua NF-A12x15 PWM chromax black Fan UAE is engineered with Noctua’s advanced aerodynamic blade design and premium SSO2 bearing technology. Its slim 15mm profile allows installation in compact PC cases, low-profile CPU coolers, and radiators where space is limited.
Automatic PWM control adjusts fan speed according to system temperatures, delivering quiet operation during normal use and increased airflow under heavy workloads. This fan is an excellent choice for gaming systems, Mini-ITX builds, professional workstations, and home theater PCs.
Key Features
- Slim 120 × 120 × 15 mm design
- PWM automatic speed control
- Maximum speed of 1850 RPM
- Premium chromax black finish
- SSO2 bearing technology
- Low-noise operation
- Long service life
External Link
https://noctua.at/
(Add this as a DoFollow link.)
Key specifications
Size (Form factor) 120 x 120 x 15 mm
Speed range 0 – 1850 rpm
Airflow (max.) 94.2 m³/h (55.44 CFM)
Acoustical noise (max.)23.9 dB(A)
Static pressure (max.) 1.53 mm H₂O
Rated voltage 12 V
Input power (typical) 1.27 W
Connector 4-pin
Colour Black
Warranty 1 years

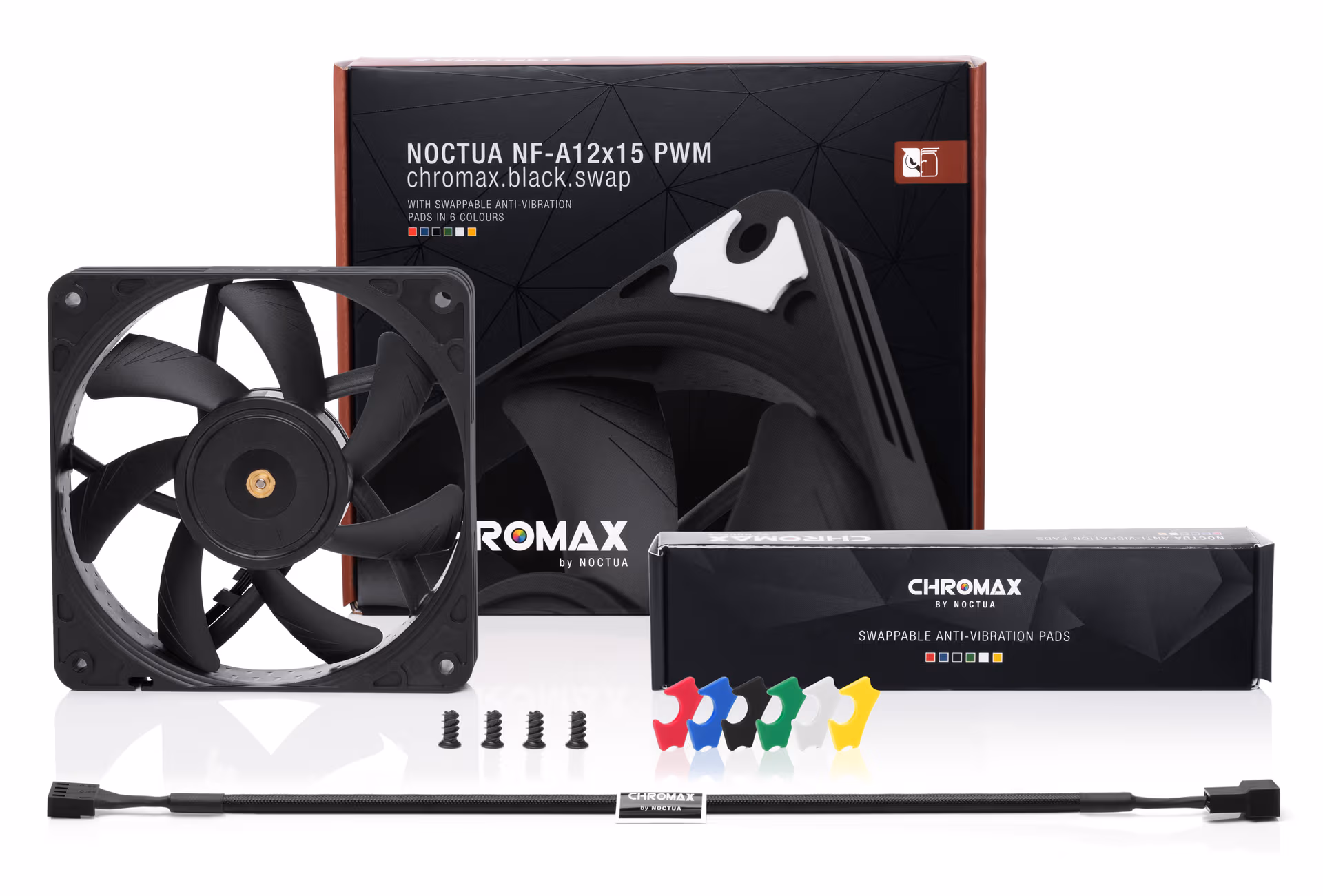

Scope of delivery

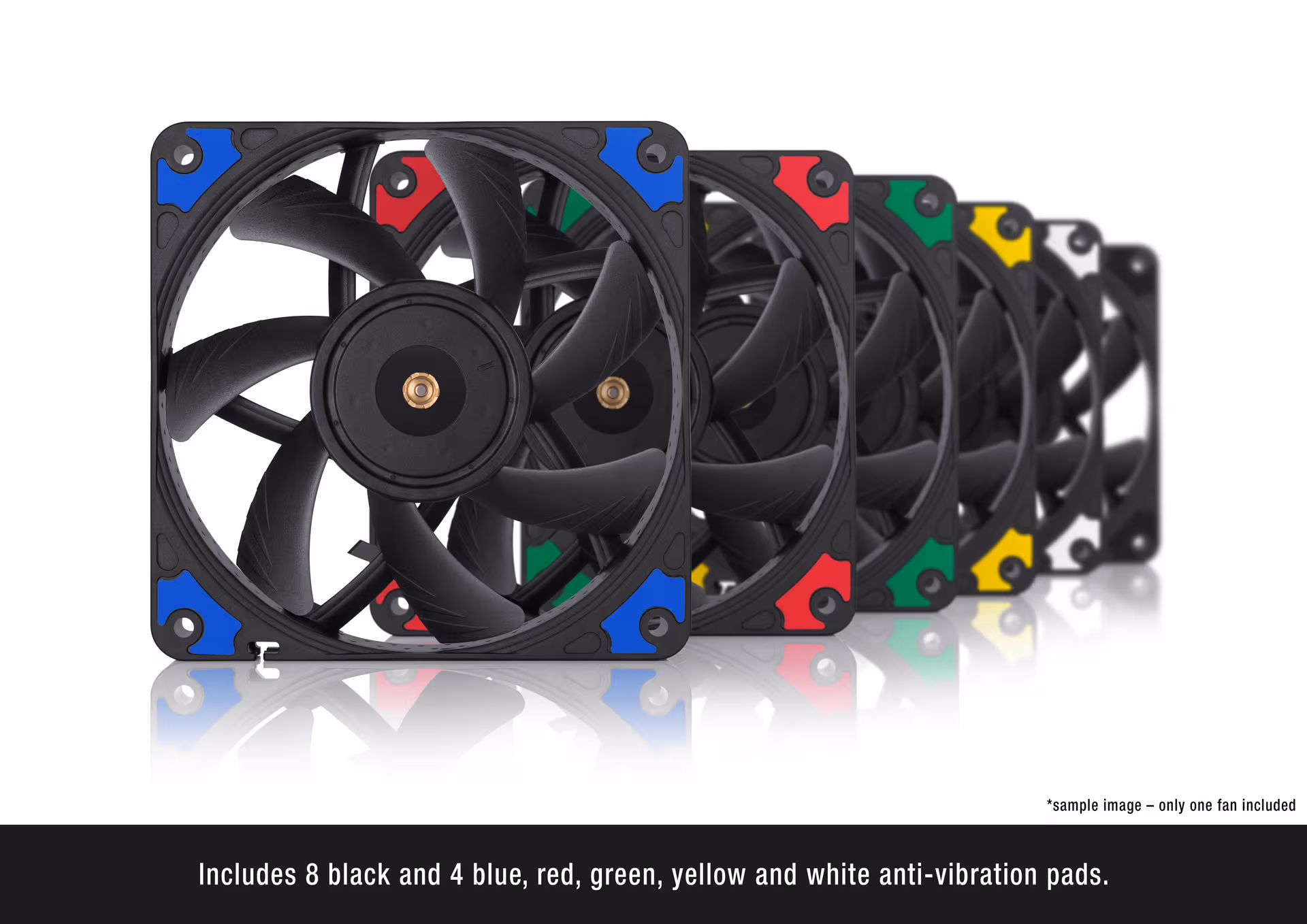

8x NA-AVP7 chromax.black anti-vibration pads
8x NA-AVP7 chromax.blue anti-vibration pads
8x NA-AVP7 chromax.green anti-vibration pads
8x NA-AVP7 chromax.red anti-vibration pads
8x NA-AVP7 chromax.white anti-vibration pads
8x NA-AVP7 chromax.yellow anti-vibration pads
NA-EC1 chromax.black 30 cm extension cable
4x fan screws
Mechanical specifications
Dimensions without anti-vibration pads 120 x 120 x 15 mm
Dimensions with anti-vibration pads 120 x 120 x 16 mm
Frame shape Square
Mounting hole spacing(s) 105 x 105 mm
Weight 130 g
Material frame PBT GF30
Material impeller PBT GF30
Material anti-vibration pads Silicone rubber
Bearing SSO2
Rotational direction Counter-clockwise
Frame colour Black
Impeller colour Black
Anti-vibration pads
colour Multi colour
Connector type A2543-4PIN (or equal)
Cable length 10 mm
Wire 28 AWG
Sleeving Fibreglass silicone mesh
Performance specifications
Rotational speed (max.) 1850 rpm
Rotational speed @ 20% PWM 450 rpm
Rotational speed @ 0% PWM 0 rpm
Acoustical noise (max.) 23.9 dB(A)
Airflow (max.) 94.2 m³/h (55.44 CFM)
Static pressure (max.) 1.53 mm H₂O
Electrical specifications
Motor type (phases) Single phase
Poles 4
Slots 4
Driver IC NE-FD1
Rated voltage 12 V
Starting voltage 7 V
Max. operating voltage 13.2 V
Pin configuration
Diagram showing the pin configuration for Noctua chromax.black and chromax.black.swap 4-pin 12V PWM fans. All wires are black, with functions distinguished by position: Pin 4 = PWM signal (+5V), Pin 3 = RPM speed signal, Pin 2 = +12V, and Pin 1 = Ground.
Pin 1 Black: Ground (GND)
Pin 2 Black: Voltage (Vcc)
Pin 3 Black: RPM Signal
Pin 4 Black: PWM Signal
Input power (max) 1.56 W
Input power (typical) 1.27 W
Input current (max) 0.13 A
Input current (typical) 0.11 A
Safety, compliance & environmental specifications
Safety standards
EN62368-1
EMC standards
EN55032, EN55035
UL
CE
UKCA
TÜV
Production standards ISO 9001 & ISO 14001
Flammability UL 94 V-0
REACH
RoHS
CMRT
EMRT
Ingress protection IP50
Operating temperature-10°C to +70°C
Operating humidity 15 – 90 %
Storage temperature -20°C to +75°C
Storage humidity 15 – 90 % MTTF> 150,000 h
Locked rotor protection
Auto power off after locked at rated voltage for 1 sec. After auto power off, the circuit attempts to restart in 2 to 6 sec.
Polarity protection
Open circuit when Vcc & GND are exchanged. Circuit won’t be burned within 5 sec when Vcc & GND are exchanged.
Overvoltage protection
Overcurrent protection
Insulation resistance 10 MΩ / between unshielded wire and frame at 500 VDC/min
Dielectric strength 5 mA max. / measured between lead wire (+) and frame at 500 VAC/min
EAN 9010018100464
UPC 841501110467
